Textile Picker and Buffer
BUK-3 Multi Shuttle Loom Picker_leather knot
time:2022-07-07 10:41:47 click:7769
keywords:Multi shuttle loom picker,leather knot,export shuttle picker,wool loom leather knot,throw shuttle knot
description:
We provide BUK-3 Duosuopi (picking knot),Woven fabric machine equipment,Injection molded nylon picker,nylon leather knot,Multi picker,Loom skin knot,Length 122mm,Width 118.5mm,Slider end thickness: 35.5mm,The bore diameter is 15mm,The inner length of the middle rectangular hole 56mm,Inner width 20.5mm,The bottom length of the square of the contact point of the shuttle is 50mm,Thickness 30mm.
Textile Fittings, textile equipment, textile nylon fittings, weaving machinery export fittings.

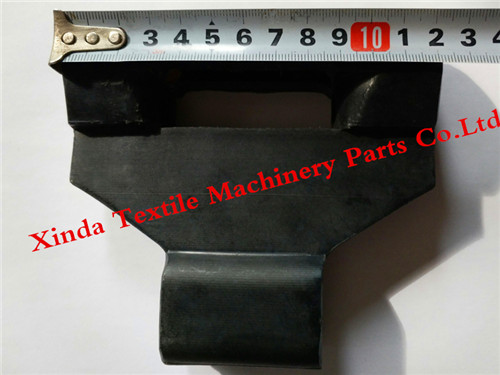

The parameters of the real sample (due to the shooting angle have errors, which are specified in the text)
Shuttle throwing knot of dobby loom
BUK-3 shuttle loom leather knot (throw shuttle knot) side view
