Shuttle Loom Parts
1511 And 1515 Shuttle Loom Spare Parts
1511 And 1515 Shuttle Loom Spare Parts time:2022-07-07 10:35:47 click:7211 keywords:1511 looms, 1515 looms,shuttle loom,weaving machine accessories, textile accessories, 1515 looms,
description:

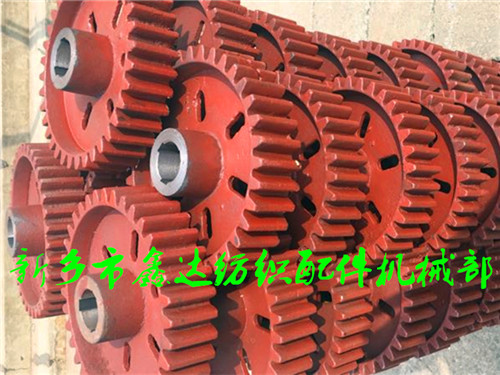

1511 and 1515 loom parts of -36T gear shaft bending (Crankshaft) (D7,3210), the hole diameter is respectively 38mm and 40mm,pitch 4,outer diameter is 239mm, the material is divided into HT20-40 (cast iron) and ductile iron (steel),products used in connection with F38RL or 3209RL,are widely used in fabric 1511 cloth and 1515 shuttle loom,textile machinery parts processing cast iron.

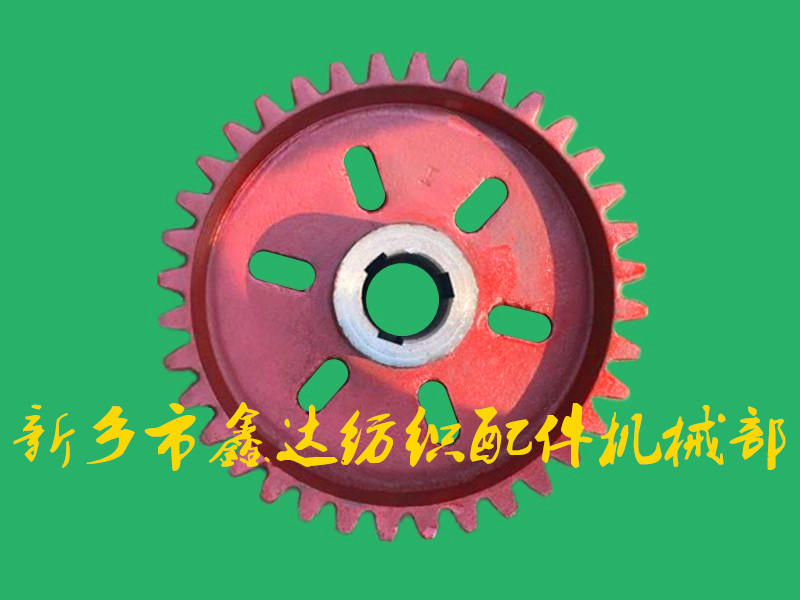

Textile accessories 3210 gears

1511 and 1515 shuttle loom spare parts_The gear tooth top picking point thickness abrasion does not exceed 1.6mm,non point tooth abrasion thickness not more than 1/2,the keyway wear does not exceed 0.3mm,gap,missing teeth,broken teeth,shaft rupture is not allowed.

1515 shuttle loom parts D7
